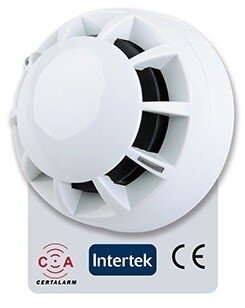

C-tec Active C4403B thermische melder EN54-5
- Conventionele melder
- Uitgang tbv nevenindicator
- Active sokkel C4408 t.b.v. automatische melder toepassen
- EN54-5 gecertificeerd door Internek
​
SPECIFICATIES
|
Part number and description:
|
C4403B Standard 75ºC Fixed Temperature Heat Detector (Class B)
|
|
Application temperature:
|
40°C typical, 65°C max
|
|
Static response temperature:
|
69°C min, 85°C max
|
|
Supply wiring:
|
2-wire monitored, polarity sensitive
|
|
Supply/operating voltage
|
9 to 33V DC
|
|
Quiescent current:
|
30µA at 24V DC
|
|
Switch on surge current
|
120µA for 3 seconds
|
|
Alarm voltage:
|
6 to 33V DC
|
|
Alarm current:
|
19mA @ 12-33V DC; 11mA @ 9V DC; 2.5mA@ 6V DC
|
|
Min. holding voltage:
|
6V DC
|
|
Min. alarm holding current:
|
2.5mA
|
|
Voltage required to light LED:
|
6V DC min
|
|
Alarm reset voltage
|
<1V DC
|
|
Alarm reset time:
|
>0.5 seconds
|
|
Remote output:
|
Current source to the negative line, short-circuit protected available via ActiV base. Max voltage 2.7V DC
|
|
Temperature range:
|
-20° to +70°C
|
|
IP Rating:
|
IP42
|
|
Dimensions (detector only):
|
102.2mm diameter, 37mm deep
|
|
Dimensions (detector in base):
|
102.2mm diameter, 57.5mm deep
|
|
Weight:
|
Detector: 99g. Base: 55g.
|
|
Detector materials:
|
White polycarbonate casing rated to UL94 V-2 with nylon parts
|
|
Base materials:
|
White polycarbonate rated to UL94 V-2 with bright tin plated steel terminals fitted with nickel plated steel screws/washers
|
|
Weight:
|
Detector: 99g. Base: 55g.
|
|
Certifications & approvals:
|
Third-party certified to EN54-5 by Intertek
|
|
Compatible Bases:
|
C4408D Diode Base; C4408 Non-Diode Base; C4408R Relay Base
|
|
|
|
|
|
