Sokkel t.b.v. Active conventionele automatische melder
SPECIFICATIES
|
Part number and description:
|
C4408D Diode Base; C4408 Non-Diode Base
|
|
Supply wiring:
|
2-wire monitored, polarity sensitive
|
|

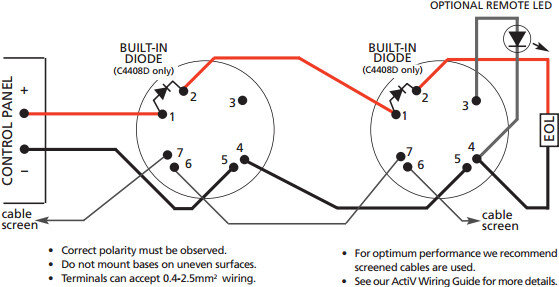

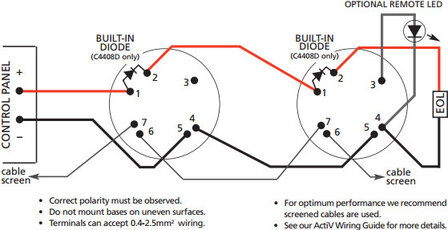

Base connection 1:
|
+Ve In (diode connection on C4408D only)
|
|
Base connection 2:
|
+Ve Out (diode connection on C4408D only)
|
|
Base connection 3:
|
Remote LED +Ve
|
|
Base connection 4:
|
0V
|
|
Base connection 5:
|
0V
|
|
Base connection 6:
|
Screen
|
|
Base connection 7:
|
Screen
|
|
Terminal size:
|
Can accept up to 2.5mm2 fire rated cable
|
|
IP Rating:
|
IP42
|
|
Dimensions (detector only):
|
102.2mm diameter, 20.5mm deep
|
|
Weight:
|
55g.
|
|
Materials:
|
White polycarbonate rated to UL94 V-2 with bright tin plated steel terminals fitted with nickel plated steel screws/washers
|
|
Certifications & approvals:
|
Certified to EN54 in conjunction with our ActiV detector approvals by Intertek.
|
